The Bearing Torque Analyzer

The Bearing Torque Analyzer (BTA) is a user-friendly running torque tester that evaluates the condition of bearings. The BTA is easy to set up for various bearing sizes, and system calibration is a simple procedure that takes less than a minute to complete. The BTA measures bearing running torque and displays the torque trace, which is printable, along with the calculated average and peak running torque values, and the maximum and average hash width.

Specifications:

- Model 500 - Air spindle accuracy 5 µin
Speed range: 0.5 to 2.5 RPM, operator adjustable.
Torque capacity: 500,000 mg-mm.
Bearing size range: 75 mm maximum.
Maximum axial capacity: 50 kg. (110 Lbs.)
Resolution: 100 mg-mm per minor chart division (minimum).
Electrical Input: 100 VAC to 240 VAC.
Air Supply: 40 psi. minimum.
Weight: 50 kg. (Complete system)

- Model 1800 - Air spindle accuracy 5 µin
Speed range: 0.5 to 2.5 RPM, operator adjustable.
Torque capacity: 1,800 g-cm / 25 in-oz.
Bearing size range: 9 inches maximum (optional tooling required).
Maximum axial capacity: 50 kg. (110 lbs.)
Resolution: 0.50 g-cm per minor chart division (minimum).
Electrical Input: 100 VAC to 240 VAC.
Air Supply: 40 psi. minimum.
Weight: 50 kg. (Complete system)

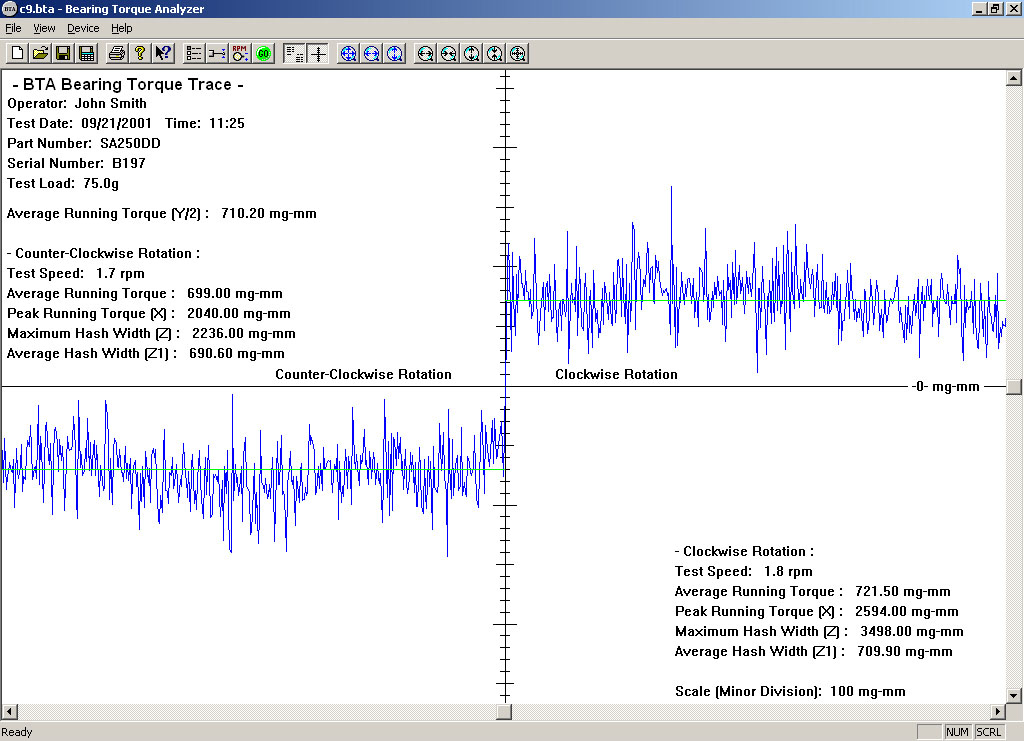

Below is a snapshot of an actual bearing torque trace made with Bearing Technology's Bearing Torque Analyzer software. The software is provided with the Bearing Torque Analyzer and runs on a complete PC system, also provided.
